Serial Port

In this tab you can configure the support of the external module on the serial port.

If you do not use any module on the serial port, select OFF.

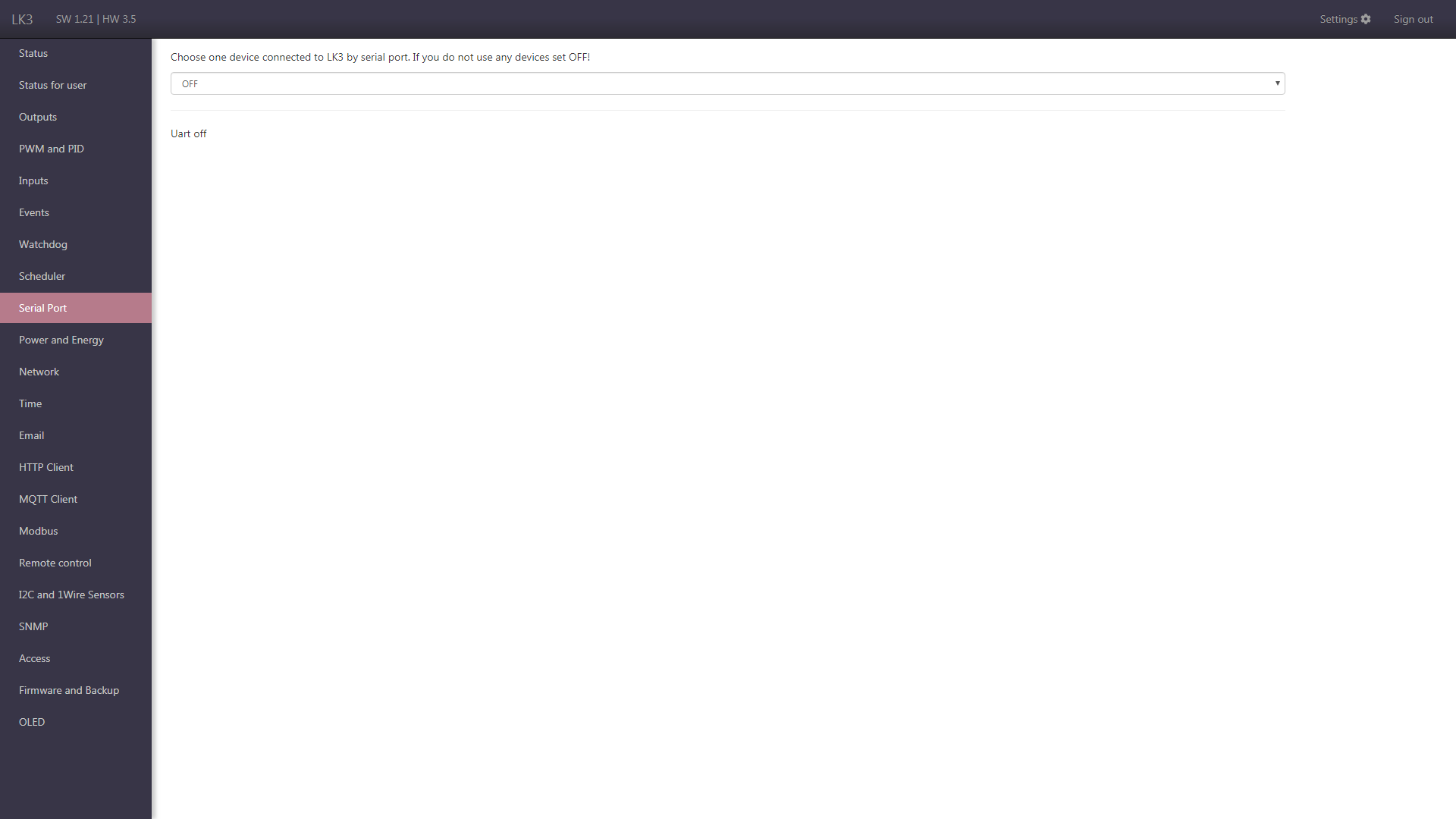

Serial Port OFF

Supported modules

Lan Controller 3.0 supports the following modules:

  • GSM SIM800L
  • Duraluxe
  • PM SDS011
  • CO2 MH-Z16/19
  • PM SPS30
  • SDM120
  • SDM72D-M

GSM SIM800L

GSM module for LC3.

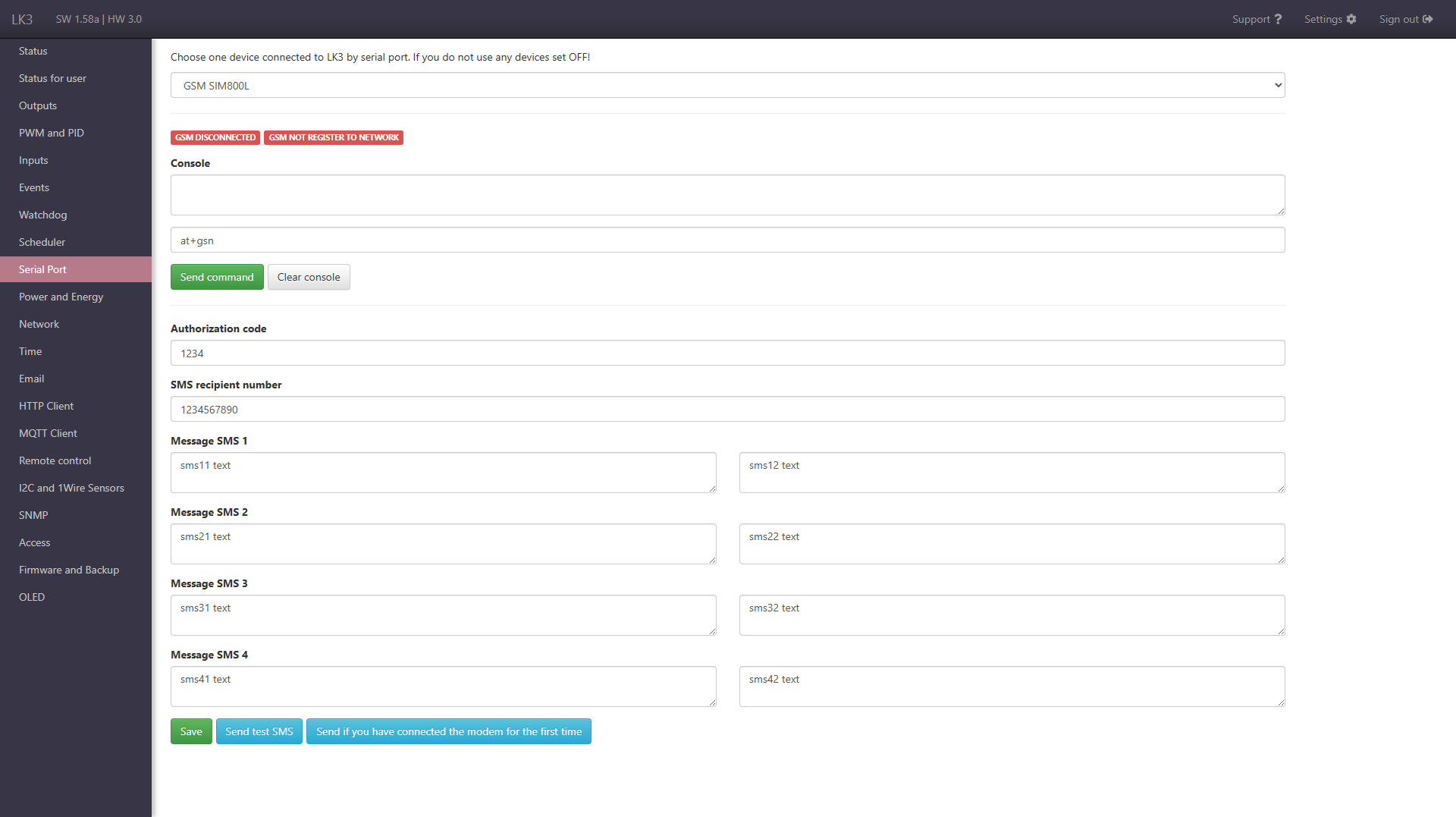

Serial Port GSM SIM800L

Duraluxe

Option to read the value of electricity production and power network parameters from Duraluxe inverters. Communication with inverters via the RS232 interface. Description provided for the listed devices.

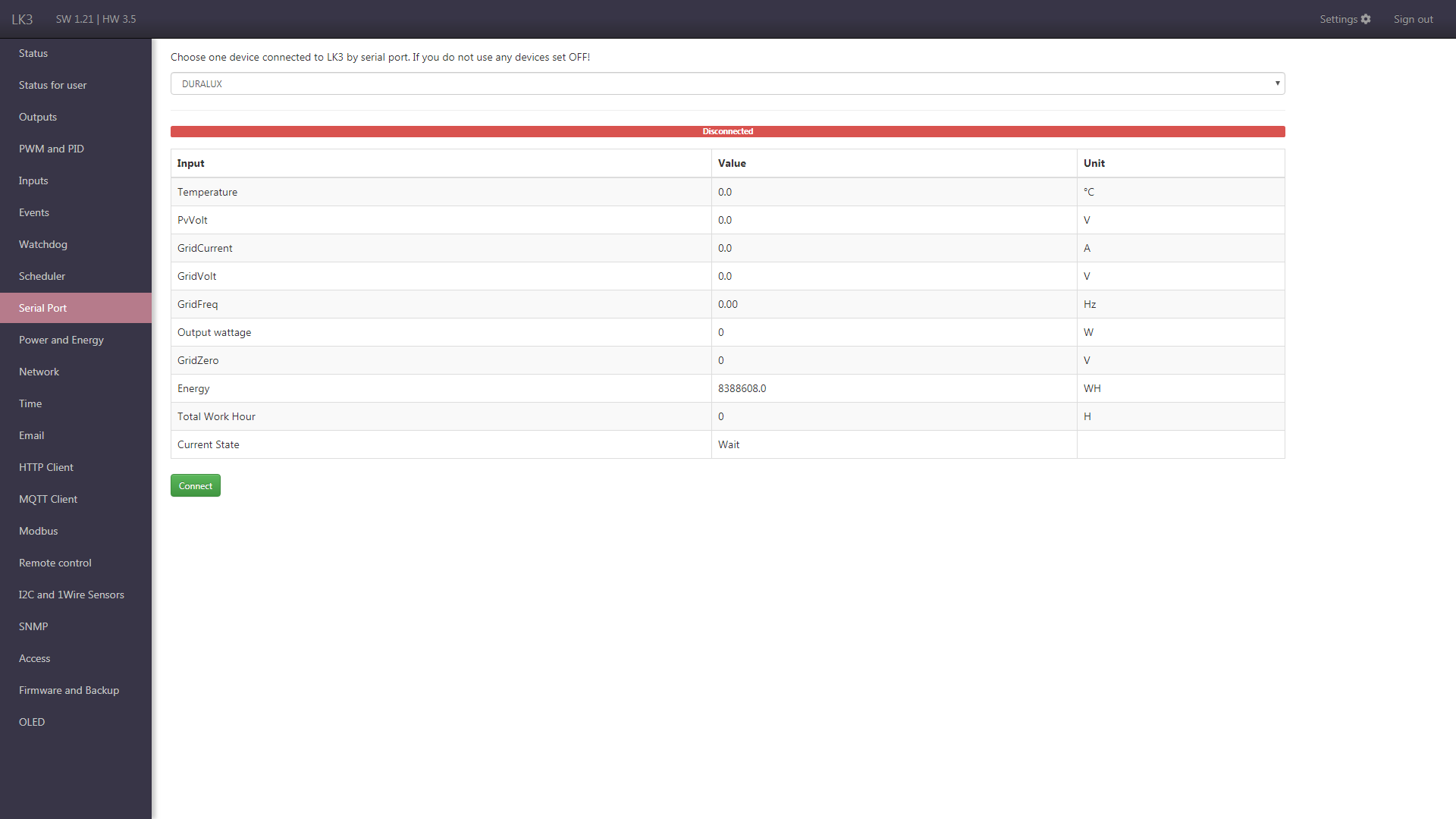

Serial Port Duraluxe

PM SDS011

Serial Port PM SDS011

CO2 MH-Z16/19

Serial Port CO2 MH-Z16/19

PM SPS30

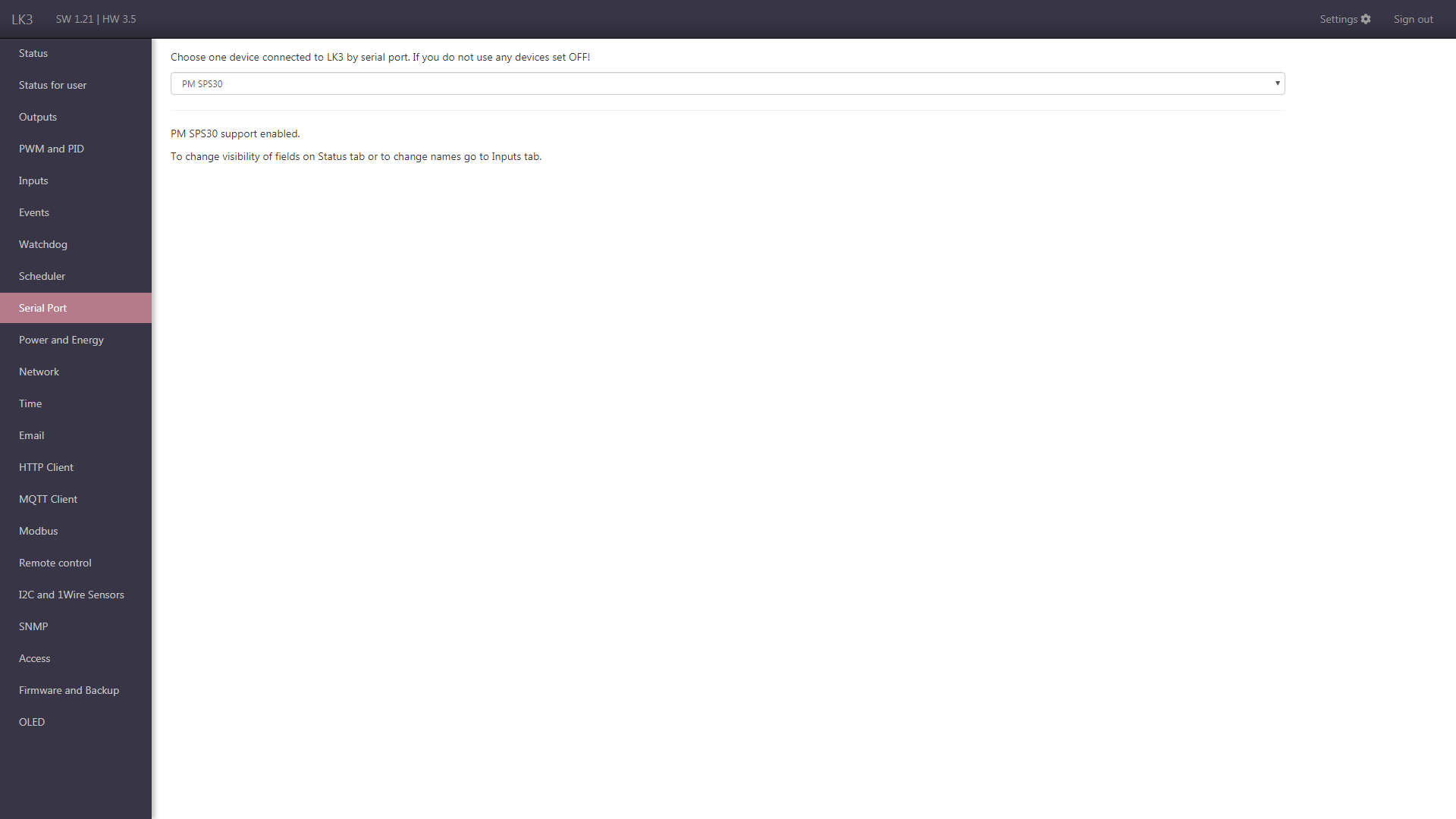

Serial Port PM SPS30
