I2C and 1-Wire sensors

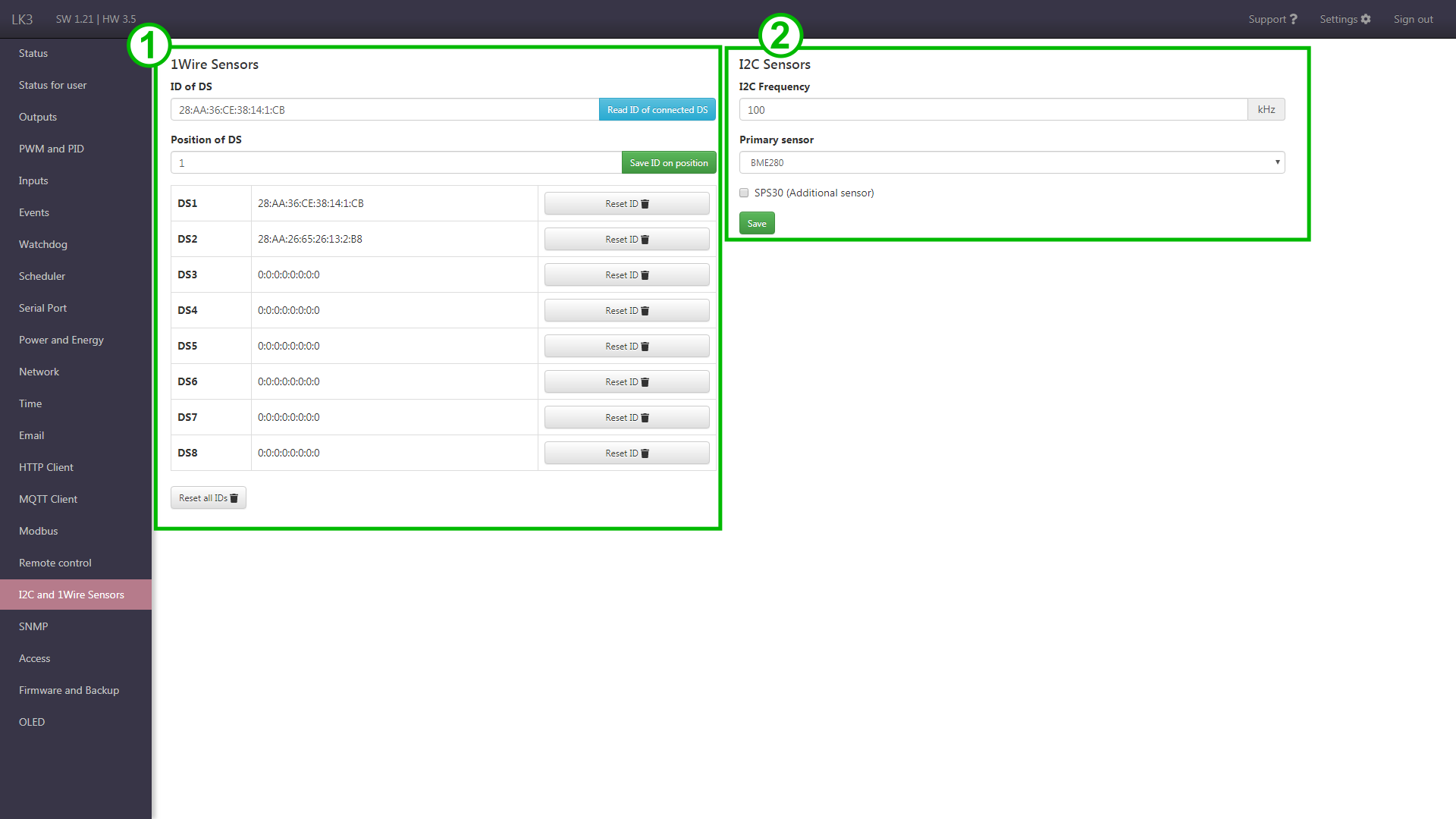

Elements of page

I^2^C and 1-Wire sensors

  1. Configuration section of 1-Wire sensors.

    • In upper part there is form with two fields: ID and Position of DS.

      Next to ID field is button that read ID of connected DS to field (it can be used many times to read subsequent IDs of connected sensors, there can be many of them at the same time). The ID can be also typed in the field by hand.

      Next to Position field is save button.

    • Table with sensors IDs and buttons to reset ID on chosen position. Below the table there is a button for resetting IDs on all positions.

  2. Configuration section of I2C sensors.

    • Form with fields for setting the I2C bus frequency, primary sensor (one of BME280, AM2320, HTS221 or none) and additional sensor SPS30.
